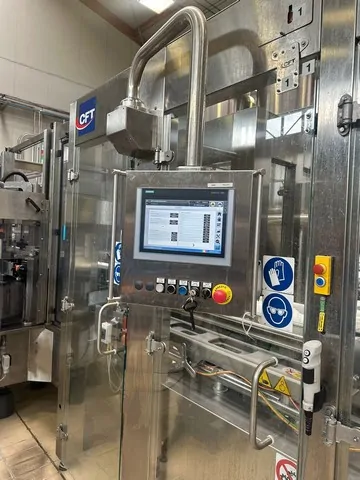

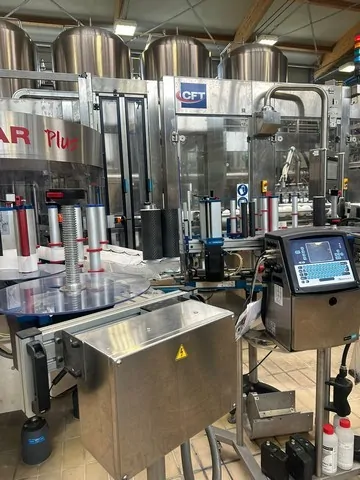

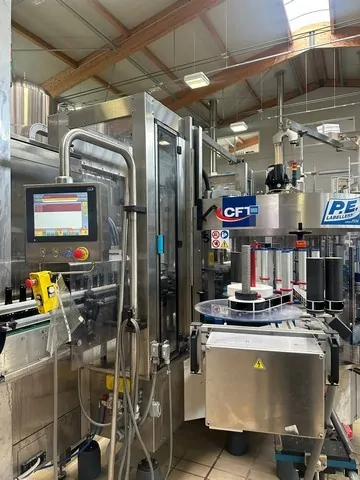

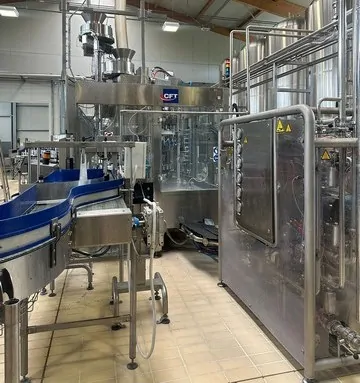

SYNCROBLOC FOR LABELING AND BEER BOTTLING IN GLASS Model: CFT S 94 / A Production Capacity: Up to 12,000 bottles/hour Container Types: • 0.33 L glass bottles (long neck and champagne type) • 0.75 L glass bottles (champagne type) Supported Caps: • Crown Ø26 mm on 0.33 L long neck bottles • Crown Ø29 mm on 0.33 L champagne-type bottles • Crown Ø29 mm on 0.75 L champagne-type bottles Labeling: • Self-adhesive front and back labels for 0.33 L long neck bottles • Wrap-around self-adhesive labels for 0.33 L and 0.75 L champagne-type bottles PE LABELER Maximum Output: • 12,000 bottles/hour without orientation • 11,000 bottles/hour with orientation Operation: • PLC + touch-screen panel for control • Automatic speed adjustment via inverter and sensors • Status indicator column light Main Components: • 4 self-adhesive labeling stations • Optical fiber system for bottle orientation • Photoelectric sensors for transparent labels • Label ionizer to eliminate static charges • No-Stop labeling system (label change without stopping production) Safety and Structure: • CE-compliant safety guards with protective doors • Plate rotation with servo motors and encoders • Electrical cabinet in stainless steel AISI 304 CFT MONOBLOC COMPOSED OF: • Fixed nozzle rinser, single treatment, 30 grippers • Isobaric filler with 30 valves • Crown capper with 6 heads • Pitch between valves: 113 mm • Supported bottle diameters: 50 – 98 mm • Supported bottle heights: 125 – 365 mm • Production Capacity: 12,000 bph on glass bottles Filling Features: • Servo-controlled valves for electronic filling phase management • MasterTronic system for automatic regulation of filling phases (pre-evacuation, filling, decompression) • CIP/SIP system for sanitization with automatic dummy bottles Crown Capper • Suitable for Ø26 mm and Ø29 mm crown caps • Centrifugal cap feeder with cap presence sensor • Pick & Place device for cap transfer • Pressure heads with magnetic pickup AUTOMATIC QUALITY CONTROL INSPECTOR Checks Performed: • Minimum and maximum filling level (with foam compensation) • Cap presence via photoelectric sensor • Label presence with dedicated sensors • Automatic ejection of non-compliant bottles Software Features: • Real-time visualization of filling and production statistics • Storage for up to 60 bottle formats • MODBUS connection for remote data management INKJET CODER • Printing of codes on bottles and labels • Support for different types of ink CAP ELEVATOR
